Set value labels and label format

Updated

Value labels are used to present data series in more detail and they are linked to data points in your dataset. You can set labels for each chart to show the values of that specific data point. You can customize the value label format for a more accurate representation of your data.

General settings

General settings will be applied to all series unless you set up labels for individual series.

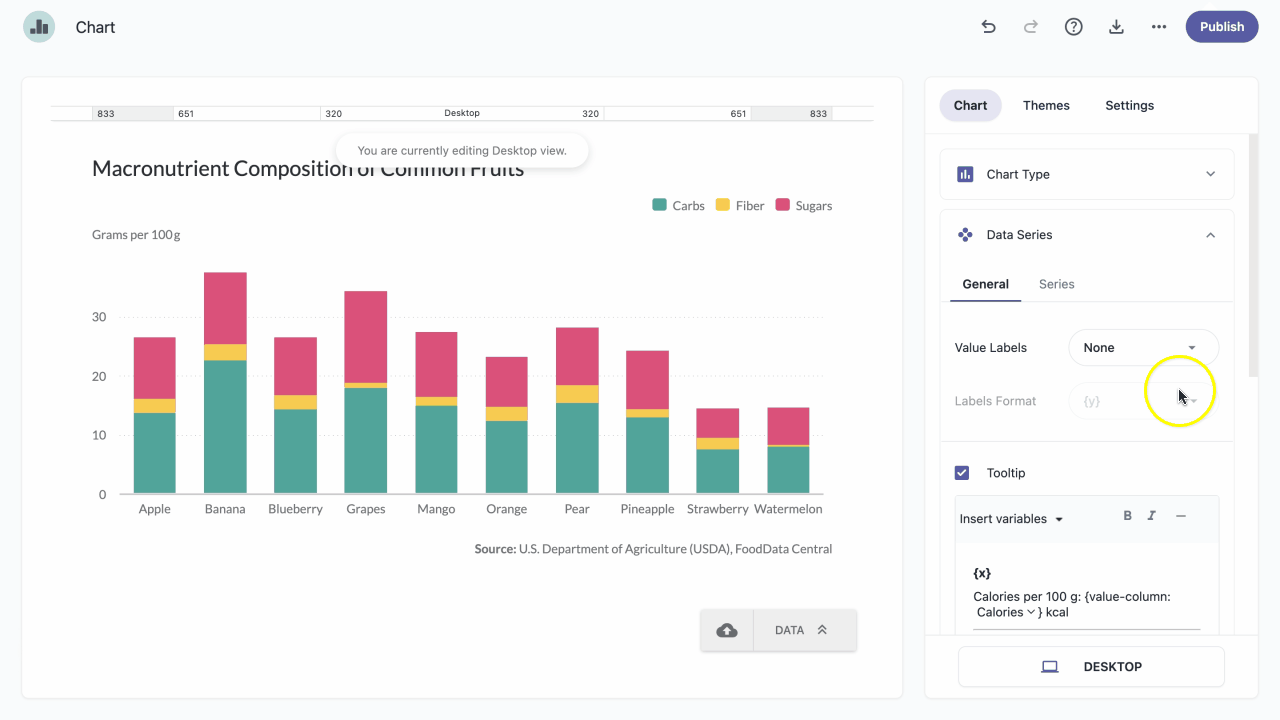

  1. In the chart panel, click Data Series to open the dropdown menu.
  2. Select the General tab.
  3. Next to Value Labels, click arrow_drop_down to access the dropdown with all available label positions and select the position that works best for your chart.
  4. Next to Labels Format, choose the format formula from the dropdown.

Individual series settings

In addition to applying the general settings to all series, you can set up value labels and format for individual series.

  1. In the chart panel, click Data Series to open the dropdown menu.
  2. Select the Series tab.
  3. Click a series you want to edit to expand it.
  4. Next to Value Labels click arrow_drop_down to select the label position from the dropdown.
  5. Next to Labels Format, choose the format formula from the dropdown.
