Axes provide quantitative and categorical scales used to label and assign values to the visual elements on a chart. The X-axis represents categories, while the Y-axis indicates the scale and units of measurement.
| Note: Setting the vertical axis is available only for individual series. |

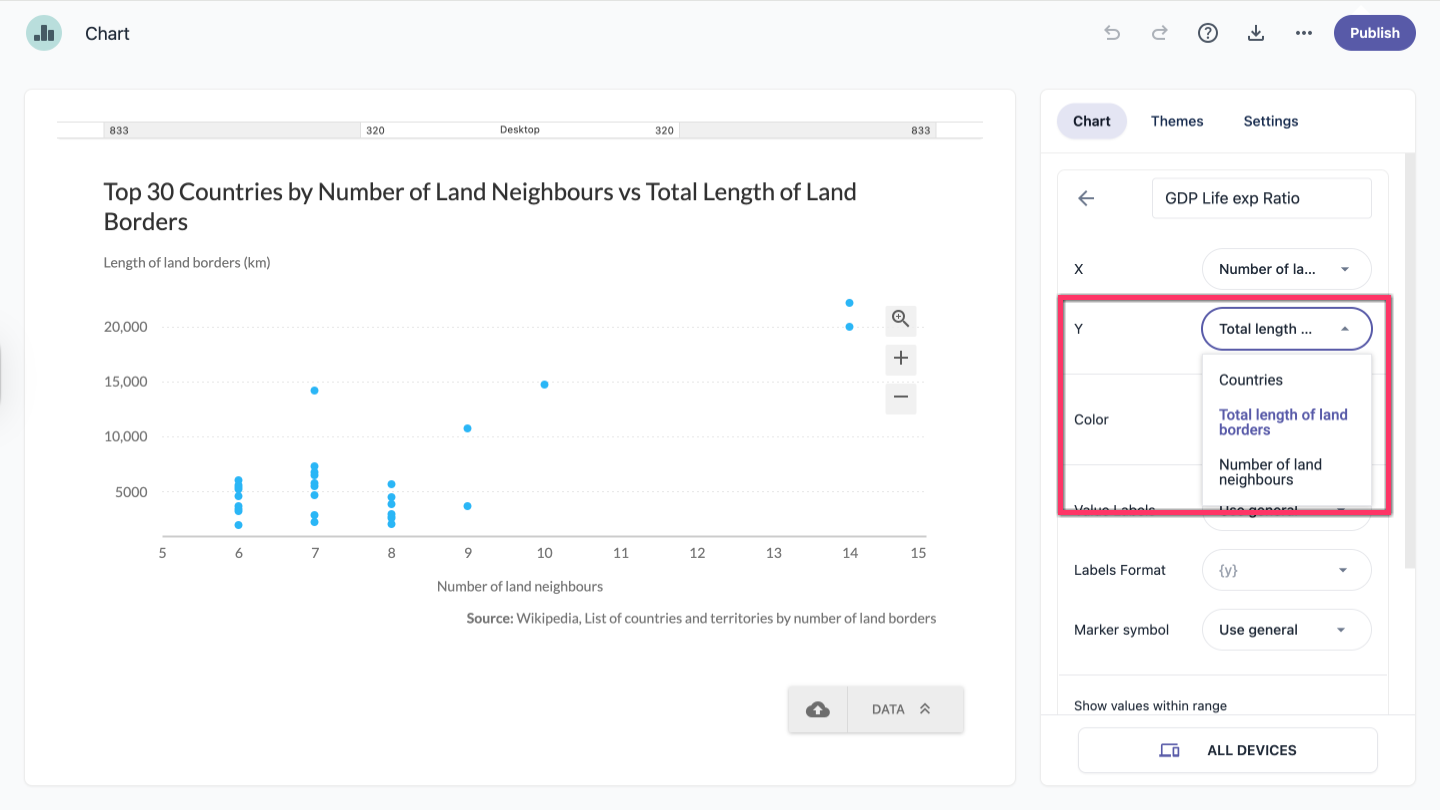

To set a vertical (Y) axis:
- In the chart panel, click Data Series to open the dropdown menu.
- In the Series tab, click the series to expand it.
- From the dropdown next to Y, select the column you want to use as the Y-axis.
| Note: A quicker way to select a series is to click it directly on the chart. |
